OM-10S OPERATION TABLE
PINARLIMED OM-10S Operation table is ideal for general surgery, gynecology, urology, orthopedics, eye surgery, brain surgery, ENT, cardiology, nephrology, obstetrics, neurosurgery with aid of its various accessories.
PINARLIMED OM-10S Operation table with 5 motors is capable of making the following movements in a smoothly and vibration-free manner:
- Horizontal sliding
- Lateral tilt
- Height adjustment
- Trendelenburg / Reverse trendelenburg
- Headrest angular position adjustment
Key Features
- Swivel castors enables easy and safe mobility of the table.
- The table has the necessary insulation and grounding protection against electrical leakages that may occur.
- External and internal mechanical parts and parts of the table, sub-chassis, column and platform chassis are made of stainless and stainless steel.
- Positioning of the operating table is carried out with an electro-mechanical system.
- All electro-mechanical movements are made with a wired hand control.
- Top table consists of head, back, sitting, right/left sides of sections. Each of these sections can be moved independently of each other.
- All parts of the table are suitable for radiological examinations.
- The table is suitable for the use of a C-arm x-ray system.
- The head part can be removed in order to use the C-arm X-ray system more efficiently and to enable different operations.
- The table top plate moves 300 mm back and forth in the head direction.
Technical Specifications
Back Section (Electrical)
60⁰ Up (-)40⁰ Down (x15⁰)
Lateral Tilt (Electrical)
25⁰ Left - 25⁰ Right Tilt
Trendelenburg (Electrical)
30⁰
Type
Electro-mechanical (Patient Handset)
Head Section (Manual)
55⁰ Up 90⁰Down (Detachable)
Leg Section (Gas Spring)
30 Up 90⁰ Down 90⁰ Side Sliding (Detachable)
Reverse Trendelenburg (Electrical)
25⁰
Slide (Electrical)
300 mm
Minimum Height
710 mm x 1010 mm
Maximum Height
760 mm x 1060 mm
Tabletop Length
600 mm x 2150 mm
Head Section
225 mm x 355 mm
Back Section
530 mm x 625 mm
Sitting Base Section
530 mm x 530 mm
Leg Section (right) (Gas Spring)
255 mm x 710 mm
Leg Section (left) (Gas Spring)
255 mm x 710 mm
Power input
230V 50 HZ
Battery Charge Voltage
24 V DC
Remote Control Voltage
5 V DC
Engine Battery Voltage
220VAC, %a- 24V DC 10A
Battery
Dry-Type / Maintenance Free
Battery Capacity
7Ah, 2V DC
Carrying Capacity
300 Kg
Battery
45 min
Accessories
- 2 x Body supports

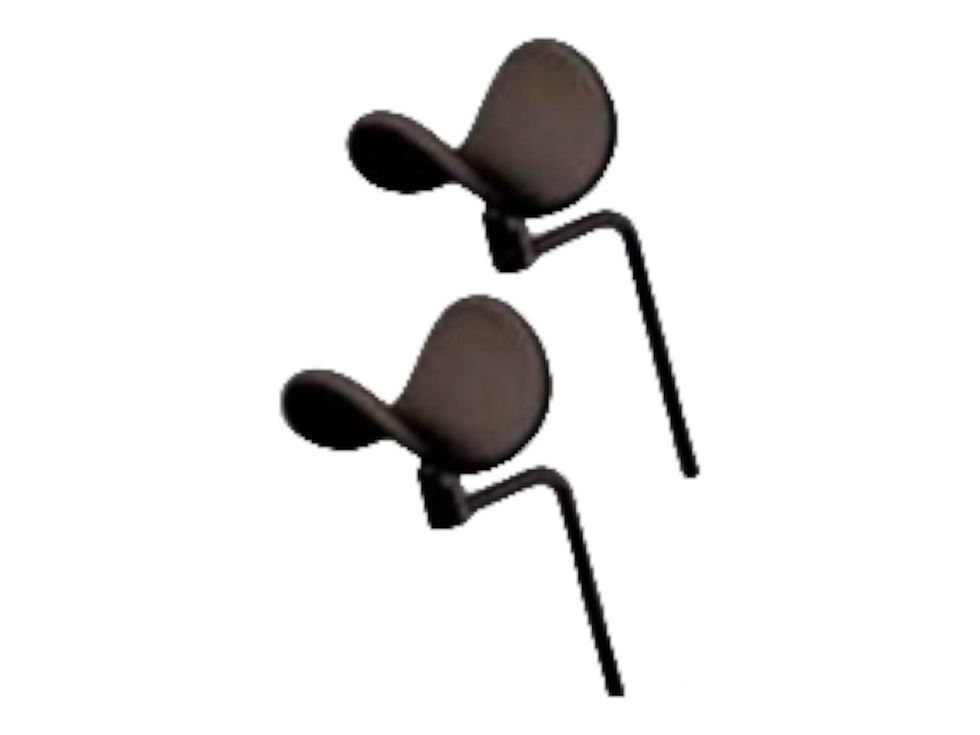

- 2 x Shoulder supports
- 2 x Arm supports
- 2 x Gynecological foot supports
- 2 x Foot supports
- 2 x Arm fastening belt
- 1 x Anesthesia frame
- 1 x Body fastening belt
- 1 x Polyuretane matress set
- 5 x Clamps
Warranty
2 Years
Support
10 years spare parts support
